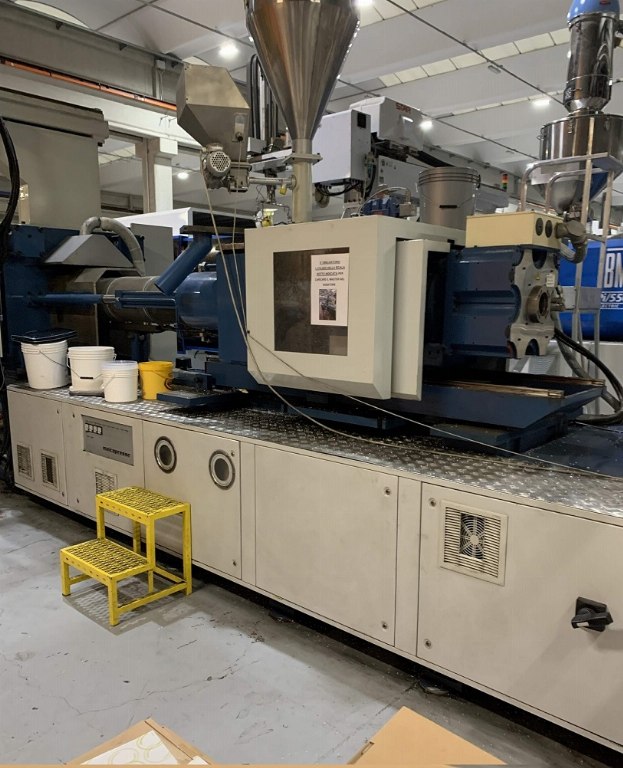

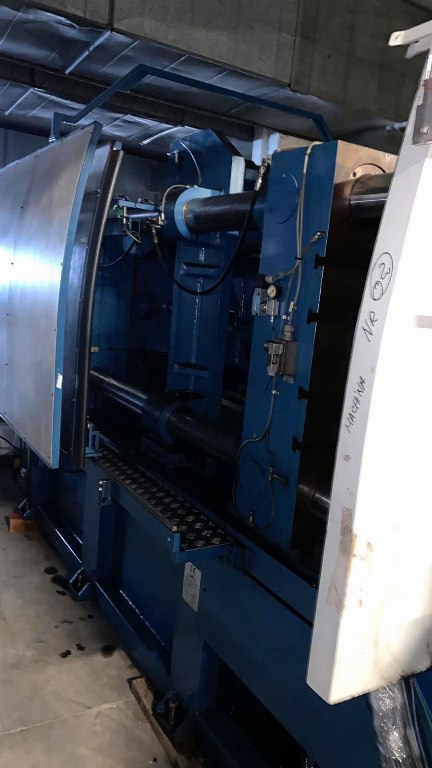

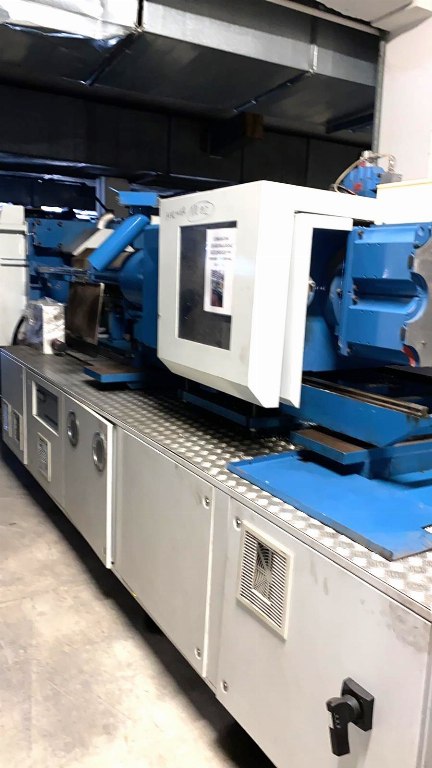

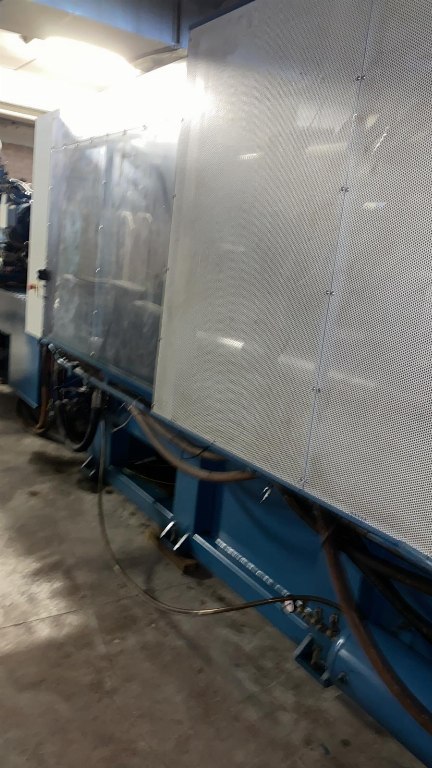

Injection Molding Machine Maico Sprint L450 IM

INJECTION MOLDING MACHINE FOR PLASTIC MATERIALS 450 TON

Closing force: 4500 Kn
Opening stroke: 1000 mm
Min/max mold thickness: 350 / 950 mm
Distance between plates: 1950 mm
Distance between columns: 750 x 710 mm
Mold holder plate (LxH): 1140 x 1100 mm
Max extraction stroke: 250 mm
Extraction force: 40 Kn

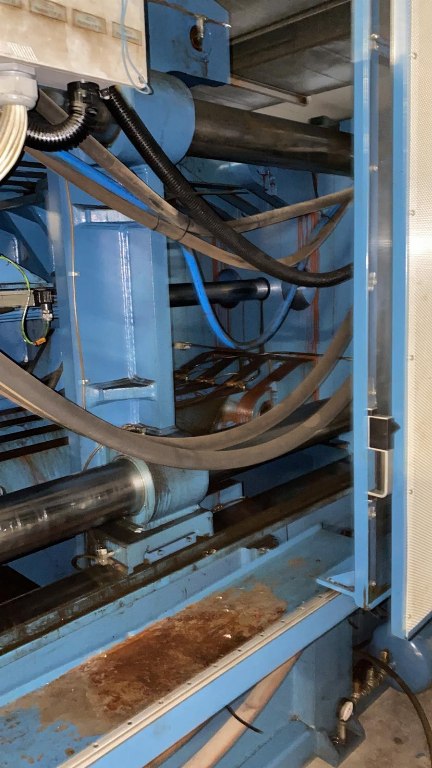

Closing system: Hydraulic Toggle
Pump motor: 120 Kw
Maximum installed power: 180 Kw

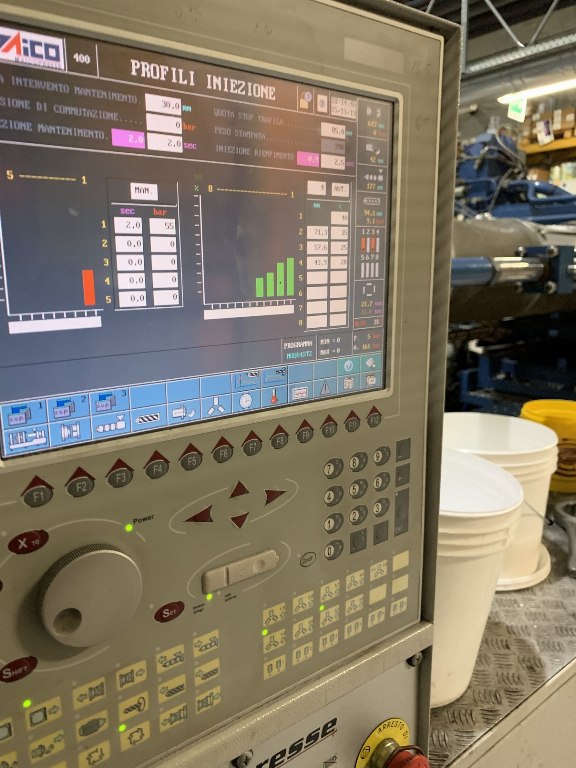

Control type: Moog
Oil tank: 680 Lt
Plasticizing motor: electric

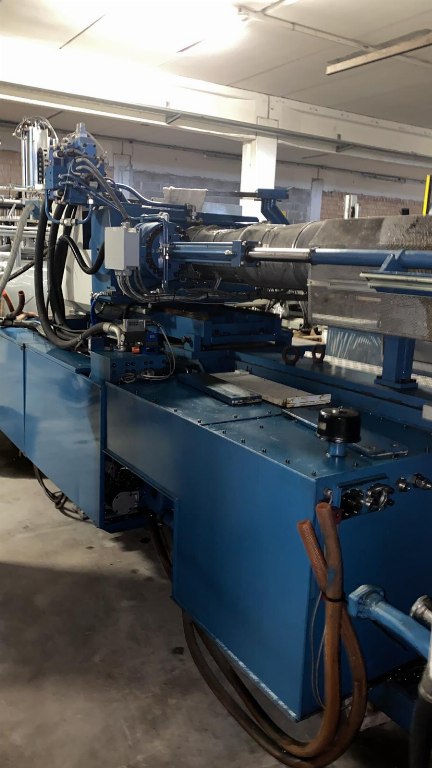

Injection unit: 4900 H
Screw diameter: 85 mm
Screw length L/D: 25 L/D
Max volume: 2380 cm3
Max injectable weight: 2237 g/ps
Max injection pressure: 2050 bar
Accessories: Core pull,Blow area,Robot interface,Shut-off nozzle

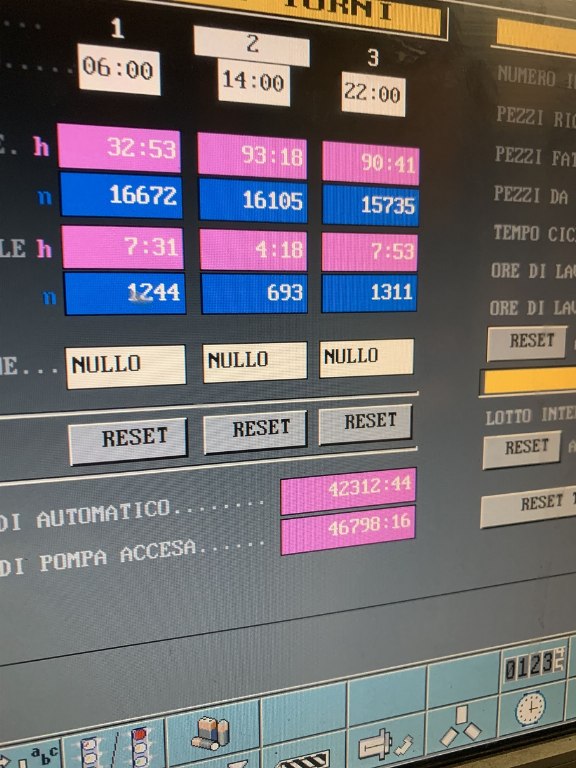

WORKING HOURS: 42,500
Weight: 18+10  Ton
Dimensions: 9,170 x 1,990 x 2,660 mm

Year: 2011

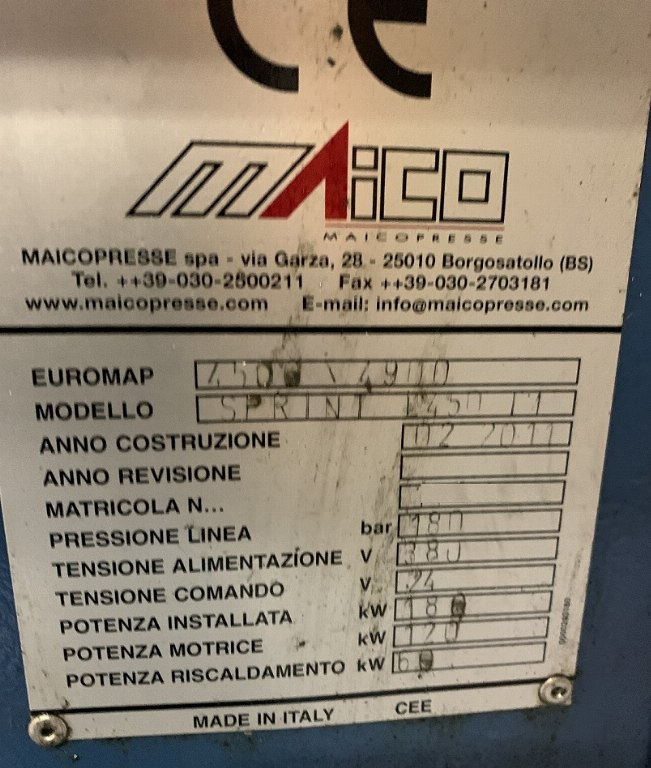

Make: Maico

Model: SPRINT L450 IM

Serial Number: 146*
